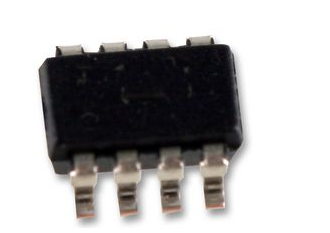

The PCA9306DCTR is a dual bidirectional I2C and SMBus voltage-level Translator IC with an enable (EN) input, is operational from 1.2 to 3.3V VREF1 and 1.8 to 5.5V VREF2. It allows bidirectional voltage translations between 1.2 and 5V, without the use of a direction pin. The low ON-state resistance (RON) of the switch allows connections to be made with minimal propagation delay. When EN is high, the translator switch is ON and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O, respectively, allowing bidirectional data flow between ports. When EN is low, the translator switch is off and a high-impedance state exists between ports. In addition to voltage translation, the IC can be used to isolate a 400kHz bus from a 100kHz by controlling the EN pin.
- 2-bit Bidirectional Translator for SDA and SCL Lines in Mixed-mode
- I2C Applications
- I2C and SMBus Compatible
- 1.5ns Propagation delay to accommodate Standard-mode and Fast-mode I2C devices and Multiple Masters
- Provides Bidirectional Voltage Translation with No Direction Pin
- Low 3.5R ON-state Connection Between Input and Output Ports Provides Less Signal Distortion
- Open-drain I2C I/O Ports (SCL1, SDA1, SCL2 and SDA2)
- 5V Tolerant I2C I/O Ports to Support Mixed-mode Signal Operation
- High-impedance SCL1, SDA1, SCL2 and SDA2 Pins for EN = Low
- Lock-up-free Operation for Isolation When EN = Low
- Flow-through Pin-out for Ease of Printed Circuit Board Trace Routing
- Latch-up Performance Exceeds 100mA Per JESD 78, Class II
- Green Product, No Sb/Br
應(yīng)用
信號處理, 通信與網(wǎng)絡(luò), 計算機和計算機周邊, 工業(yè), 自動化與過程控制
